Inicio /Productos/Máquina de bordado de tejidos/SHENSHILEI/SHEENY STAR Cap Embroidery Machine For Garments And Tubular High Speed Model Custom

SHENSHILEI/SHEENY STAR Cap Embroidery Machine For Garments And Tubular High Speed Model Custom

1 Set
MOQ
SHENSHILEI/SHEENY STAR Cap Embroidery Machine For Garments And Tubular High Speed Model Custom
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Industrias aplicables: Garment Shops, Manufacturing Plant, Printing Shops, Advertizing Company, fábrica del bordado
Condición: Nuevo
Tipo: Máquina del bordado del casquillo
Operación: Automatizado
Dimensiones totales: 3000*1500*1500 milímetro
Garantía: 1 año
Tamaño de la mesa de trabajo: 400*450 milímetro
Intervalo principal: 400 milímetros
Área del bordado: 400*450 milímetro
Servicio post-venta proporcionado: Ayuda en línea, soporte técnico video, mantenimiento de campo y servicio de reparación
Certificación: CE / ISO
ORDENADOR: DaHao A18/528
Motor: Motor servo de Dahao
Función: Casquillo/camiseta/ropa/logotipo
Velocidad máxima: 1200 RPM
Fuente de energía: Herzios 220 V/50
Lengua: 12 idiomas
Cabeza: Velocidad
Color: blanco/verde
tabla: De madera
Diseño del cuerpo: modelo del casquillo
Información básica
Certificación: CE / ISO
Pago y Envío Términos
Packaging Details: fix size wooden package / carton package
Supply Ability: 200 Set/Sets per Month
Descripción de producto
Product Description



Product Application

SSL High Speed Flat Embroidery Machine is Suitable for garments fabric and logo embroidery .

SPECIFICATIONS FOR CAP/TUBULAR MODEL EMBROIDERY MACHINE




Control System
Computer
Dahao
A18 / 528 / D56

Motor
Dahao
servo motors

Power
220 v
50 HZ

Main specification
Head
9/12/15needles
jump solenoid / motor

Speed
1000 RPM
Max 1200 RPM

Area
400 mm
cap 270 degree
flat 400*450 mm

Option Parts
Device
sequins
cording

Rotary Hook Size
High speed 1.0
Jumbo 1.6

Needle Size
#11 / 12 / 14
Thick #16 / 18



Main Features



1.Computerized embroidery for cap&garments and home textile products.



2.Machine can be used for flat embroidery also ,suitable for small size and logo design,special for customization production.



3.Easy to input the design to machine from designing software as Wilcome /TAJIMA/etc which major used worldwide .



4.Device option:single sequins/twin sequins/4 sequins/simple cording/etc .













Certifications
Detailed Images

Machine Parts



1.Special structure design for switching flat to cap&T-shirt etc embroidery easily.







2.Equipped with DAHAO control system ,easy to operate with large designs memory





REGULAR CONFIGURATION :



1.Auto trimmer system ,automatic color changing,support design preview and make-up embroidery and other function .



2.Max flat speed 1200RPM,cap 1000 RPM ,max cap frame rotation range 270°



3.Customized model from single head /double heads to 4/6/8/10 heads,with frame body and wheel design for easy moving .

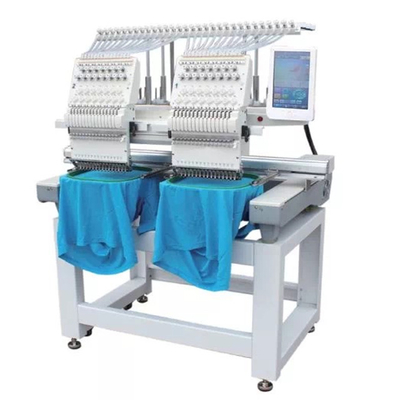

Machine Photo


1. All parts follow high speed model standard

2. Top quality control system by company

3.Well Testing before delivery



Fitting process :


1. More than 15 years experience for manufacturing

2.All the process based on international standard

3.Fast and high-efficient flow production system




Our Service




Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.





After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging

Size
Depand on machine model

overlap is avaibale



Packaging Details
The normal package is vaccum package

The wooden package is also avaibale for small machine according to customers special request.

Iron support / frames is provided for over lap loading .
